Navitas Club Car 5KW DC to AC Conversion Kit w/ OTF Programmer (Club Car DS IQ/Precedent/Excel/Onward with Curtis 1510-1515)

Fits: Club Car Precedent 48V, Club Car DS IQ 48V, Club Car Excel, Club Car Onward (Curtis 1510-1515)

Take your Club Car golf cart to the next level with a Navitas DC to AC conversion kit. The Navitas TAC2 DC to AC kit is engineered to significantly increase your golf carts torque, top speed and acceleration.  Easily adjust your acceleration, maximum speed and regenerative braking with the turn of a knob using the included on-the-fly (OTF) programmer or review your carts diagnostic data using the Bluetooth enabled app.

The Navitas TAC2 600A 48V-72V DC to AC Conversion Kit includes is a fully-programmable 600A AC controller with a 5KW Navitas AC motor and an On-The-Fly Programmer. This kit also includes an OEM direct Connector, mounting plate and a auxiliary harnessing for a hassle free installation. The kit is compatible with Curtis 1510-1515 or 1268 non-ITS OEM controllers.

This controller is compatible with 2001-2021 Club Car Models and is not compatible with 2022 and newer models.

Kit Features:

• 600A state of the art Mosfet technology
• Bluetooth programmable w/mobile app
• Fully sealed IP5X
• Motor thermal protection
• OEM multi-platform mounting options
• One button cart lock-out
• On-The-Fly (OTF) programming
• Regenerative braking
• Rollback protection
• Speed-limiting ability
• Thermal protection
• Variable acceleration rate
• Variable maximum speed control
• Variable regen control

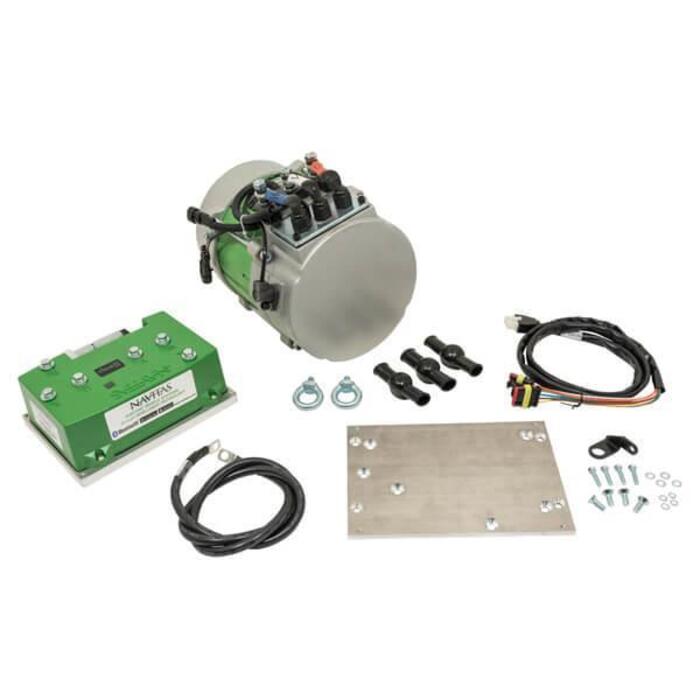

Kit Includes:

Club Car IQ/Precedent/Excel/Onward (Curtis 1510-1515)

• TAC2 Controller 600A w/ Bluetooth
• TAC2 Club Car Curtis 1510/1515 Module (Installed)
• OTF1.0 Programmer (3.75m cable)
• Hardware Mounting Kit
• Navitas 5KW (10T) AC Motor
• AC Motor Phase Cable
• Motor Sensor Cable

Battery Voltage:

• 48 - 72 Volts

Output Capability:

• 600A

5KW Navitas AC Motor Features

• High performance AC induction motor
• External speed sensor
• Internal Temperature sensor
• Steel and aluminum construction
• High torque & speed

5 KW Navitas AC Motor Technical Specifications

• Type of Motor: AC Induction
• Rated Power: 5KW
• Rated Voltage: 34V (AC)
• Rated Current: 113A
• RPM: 0~5785 r/min
• Spines: 19
• Insulation Class: H
• Protection Mode: IP44
