Navitas Yamaha G29 Drive & Drive 2 4KW DC to AC Conversion Kit w/ OTF Programmer

Navitas Yamaha G29 Drive & Drive 2 4KW DC to AC Conversion Kit w/ OTF Programmer

Regular price $1,800.00 USD
Regular price Sale price $1,800.00 USD
Sale Sold out

Fits: Yamaha G29 Drive & Drive 2

Take your Yamaha golf cart to the next level with a Navitas DC to AC conversion kit. The Navitas TAC2 DC to AC kit is engineered to significantly increase your golf carts torque, top speed and acceleration. The navitas TAC2 DC to AC kit is compatible with both G29 Drive and Drive 2 DC models. Easily adjust your acceleration, maximum speed and regenerative braking with the turn of a knob using the included on-the-fly (OTF) programmer or review your carts diagnostic data using the Bluetooth enabled app.

The Navitas TAC2 600A 48V-72V DC to AC Conversion Kit includes is a fully-programmable AC controller with a 4KW Navitas AC motor and an On-The-Fly Programmer. This kit also includes an OEM direct Connector, mounting plate and a auxiliary harnessing for a hassle free installation.


  • 600A state of the art Mosfet technology
  • Bluetooth programmable w/mobile app
  • Fully sealed IP5X
  • Motor thermal protection
  • OEM multi-platform mounting options
  • One button cart lock-out
  • On-The-Fly (OTF) programming
  • Regenerative braking
  • Rollback protection
  • Speed-limiting ability
  • Thermal protection
  • Variable acceleration rate
  • Variable maximum speed control
  • Variable regen control
  • 2 rows of pins

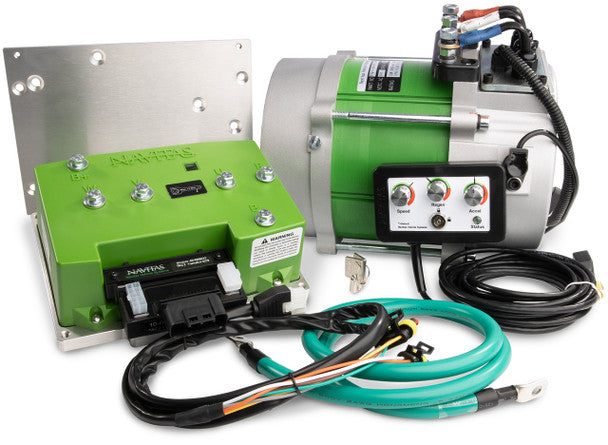

Kit Includes:

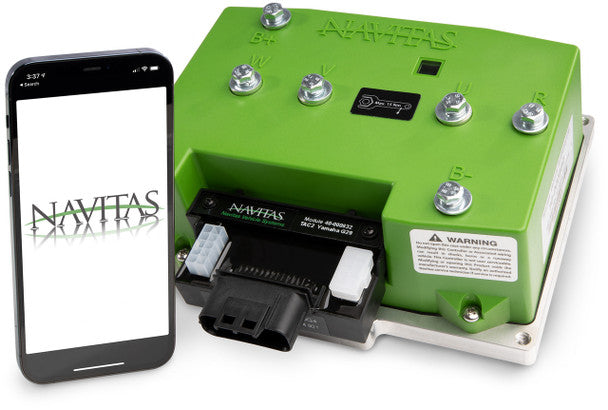

  • TAC 2 Controller 600A w/ Bluetooth
  • TAC2 G29 Moric Module (Installed)
  • OTF1.0 Programmer (3.75m cable)
  • Navitas 4KW (19T) AC Motor
  • AC Motor Phase Cable
  • Motor Sensor Cable
  • 4 Ring Terminal for A2 Cable
  • Hardware Mounting Kit

Battery Voltage:

  • 48 - 72 Volts

Output Capability:

  • 600A

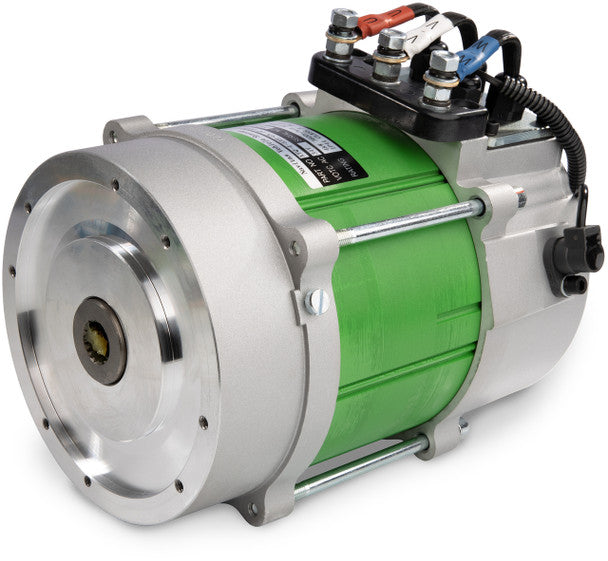

4 KW Navitas AC Motor Technical Specifications

  • High performance AC induction motor
  • External speed sensor
  • Internal Temperature sensor
  • Steel and aluminum construction
  • High torque & speed

Type of Motor: AC Induction

  • Rated Power: 4KW
  • Rated Voltage: 34V (AC)
  • Rated Current: 91A
  • RPM: 0~6800 r/min
  • Insulation Class: H
  • Protection Mode: IP44
